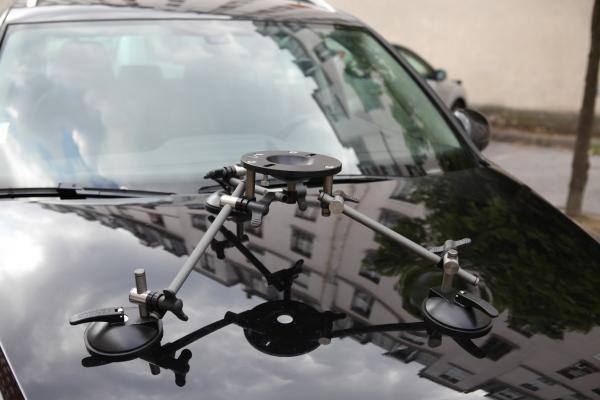

Car mounts

• Different Car Mount Frame width available (750mm, 1000mm, 1500mm, 1750mm & 2000mm)

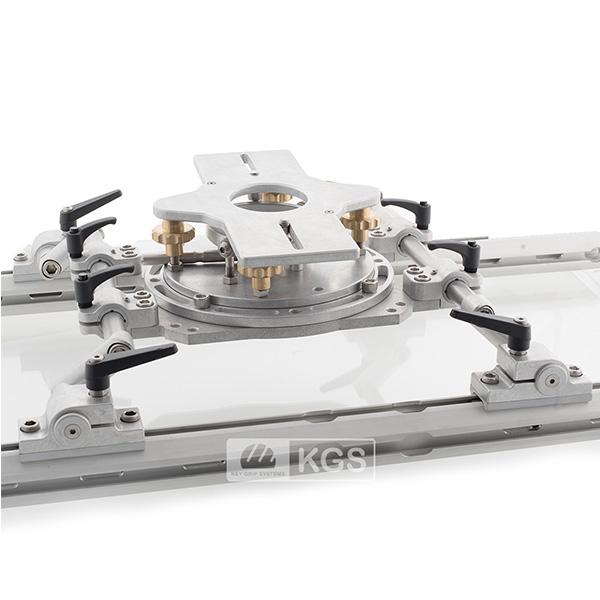

• The Spyder Sliding Mount fit on the Car Mount Frame allowing fine tuning camera positions (including hight)
• The Sliding Clamp fit on the Car Mount Frame allowing to receive our full Gekko Cup range (1, 2, 3 or 4 cups)
• The rubber Gekko cup glue to the car parts simply by “pushing on” (7 Kg / Cup)
• The Side Mount Bracket fit on the Car Mount Frame allowing to receive our full Gekko Cup range (1, 2, 3 or 4 cups)
• Car Mount Frame is compatible with scafolding couplers (Diam 48-50mm) & Octogrip tubing & couplers

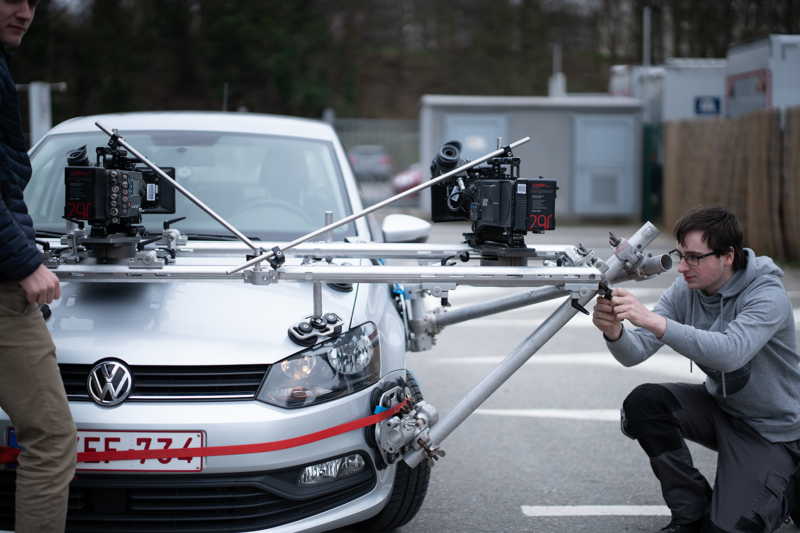

• Standard Car Mountrental package:
  • 1 x Main Frame 350 mm x 750 mm
  • 1 x “Spyder”

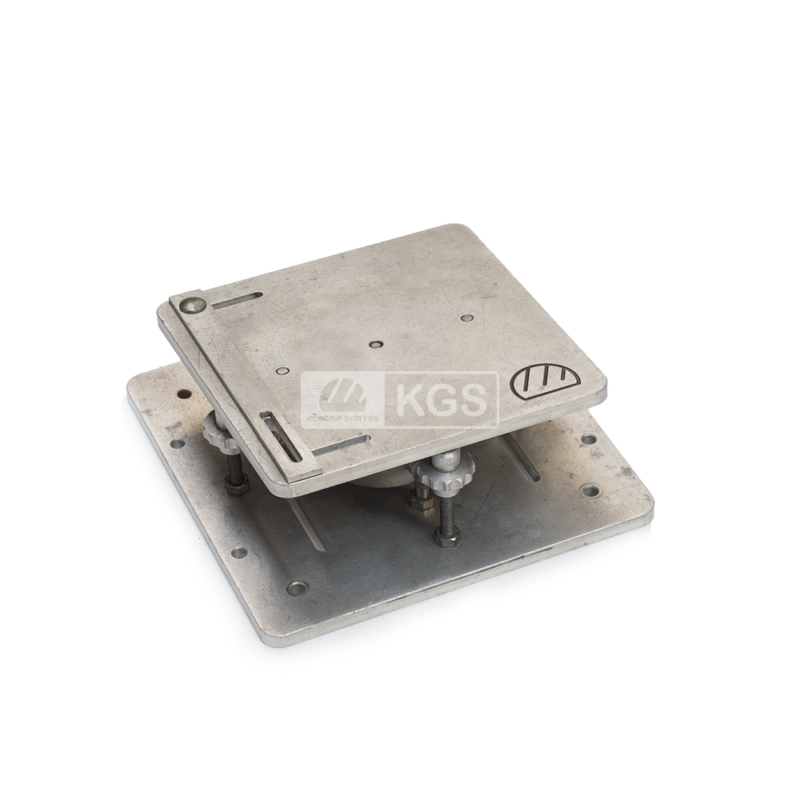

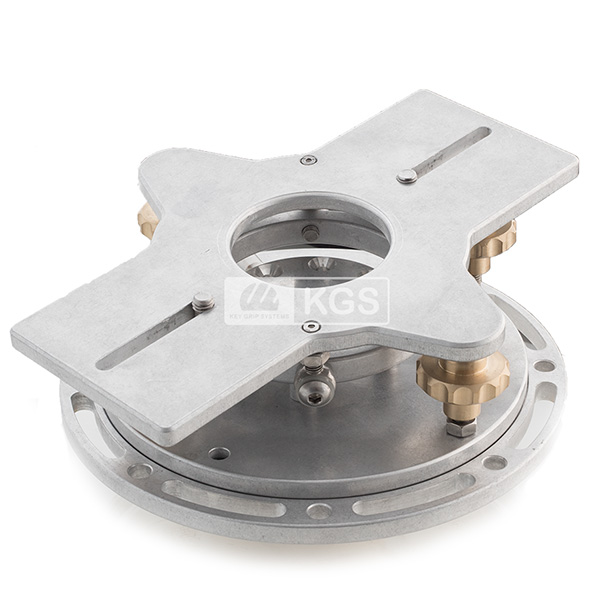

  • 1 x4 way leveling head or Bowl leveling Head
  • 4 x Gekko 1 cup
  • 4 x Gekko 2 cups
  • 4 x Sliding rods clamp
  • 4 x Rod extensions 150mm
  • 4 x Short rods
  • 2 x Side mount Bracket

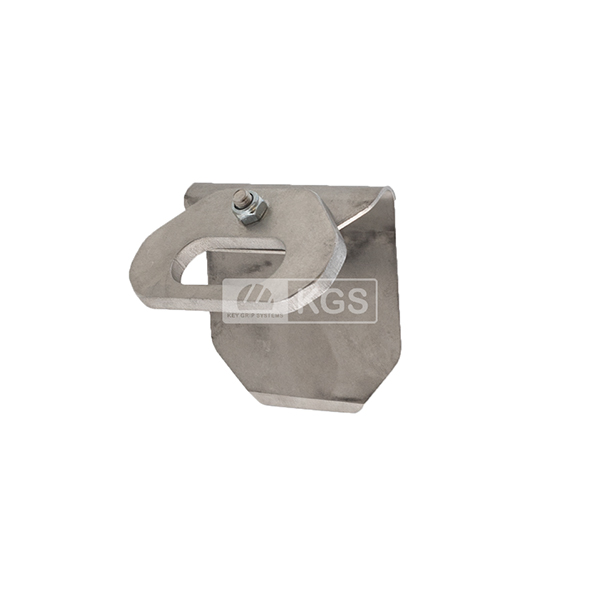

  • 2 x Windows Strap Hook

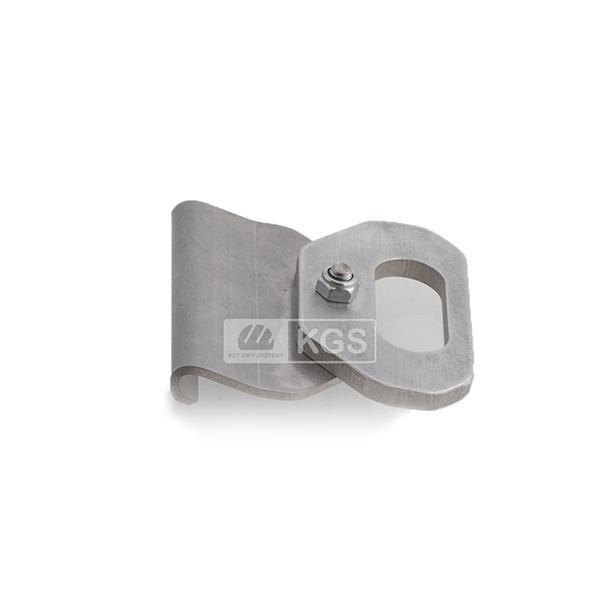

  • 4 x Doors Strap Hook

• The Sliding Wedge Plate allows rigging cameras on Front Mode or Side Mode
• The Sliding Wedge Plate allows basic tuning on camera position (large range on camera hight on side mount + large range of camera slide in front mode).
• The Plate Clamp fit on the Wedge Plate allowing to receive the full Gekko Cup range (1, 2, 3 or 4 cups)
• The rubber Gekko cup glue to the car simply by “Pushing On” (7 Kg / Cup)

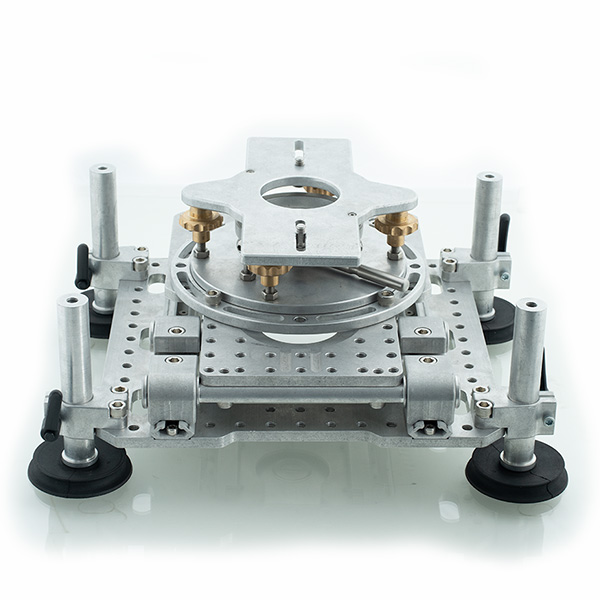

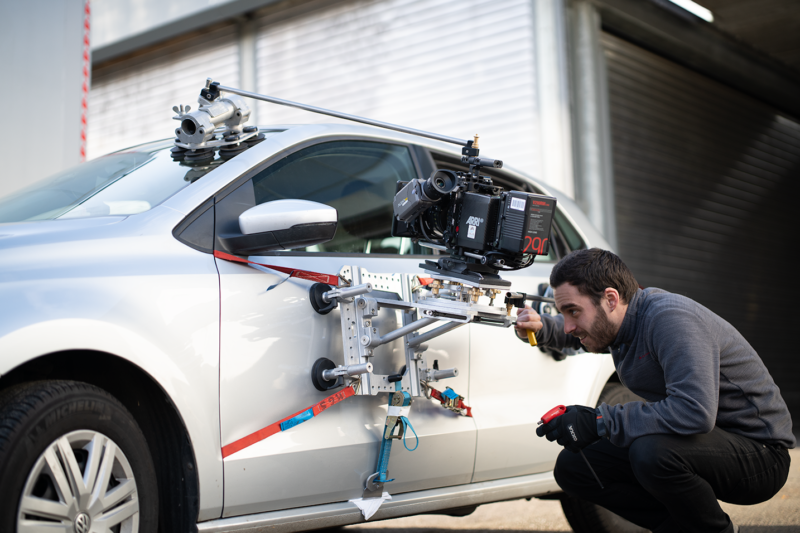

Basic Car Mount System rental package :

• 1 x Sliding Wedge Plate
• 4 x Plate Clamp
• 4 x Way Mitchell Leveling & Paning Head*
• 4 x Gekko Cup 1
• 2 x Window’s Strap Hook
• 2 x Door’s Strap Hook

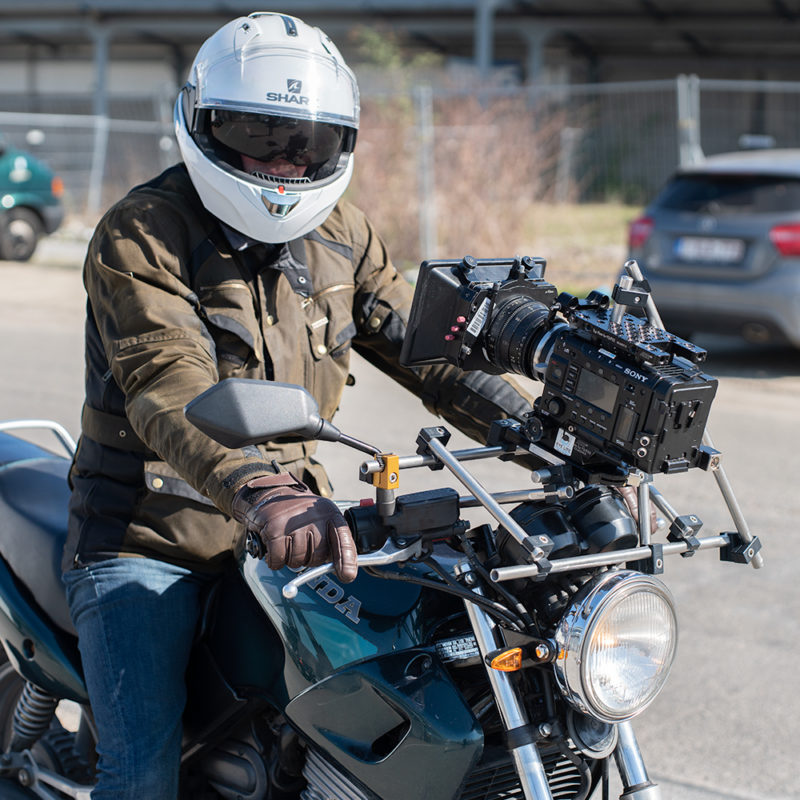

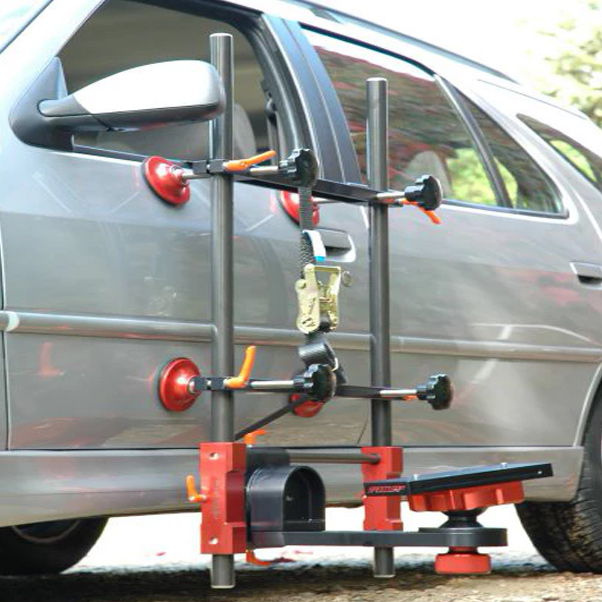

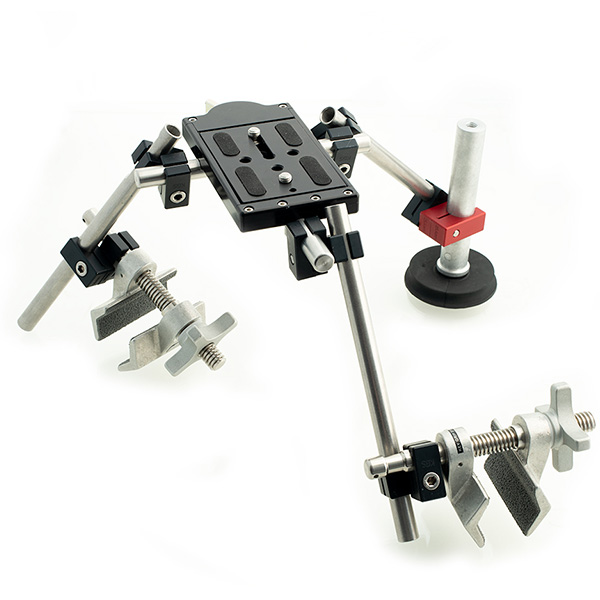

• The Rod Mount System allows strong, light & “rock steady” camera rigging on particular vehicle like; motorbike, boat, race car…
• The Rod Mount uses the “standard fixing tools” used on all film set : Camera Docking with Standard Quick Realese Plate, 16mm Rods, Spigot 16mm, 3″8′ Thread…) Even the “Gekko Cup” can be used as points of attachment on non porous surfaces.

Rod Mount rental package:

• 2 x Cardellini Clamp internal Jaw
• 2 x Cardellini Clamp external Jaw
• 8 x KGSD rod clamp 16/16mm (Black / Black))
• 2 x KGSD rod Clamp 16/19mm (Black / Gold)
• 2 x KGSD rod clamp 16/15mm (Black / Blue)
• 4 x KGSD rod clamp 16/25,4 mm (Black / Red)
• 2 x 16mm rods / 250mm
• 2 x 16mm rods / 300mm
• 2 x 16mm rods / 500mm
• 2 x 16mm rods / 750mm
• 2 x 16mm rods / 1200mm
• 1 x camera docking (including QRP plate)

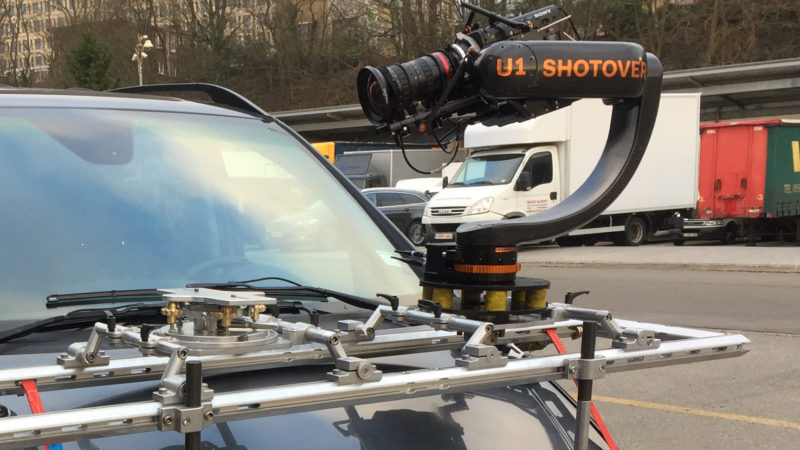

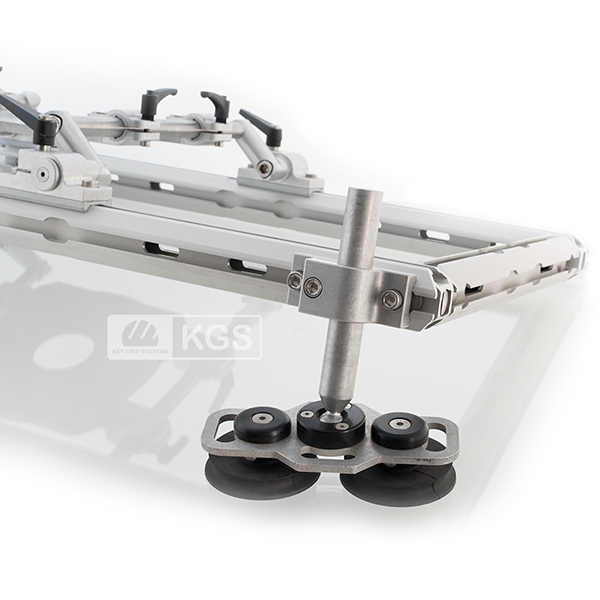

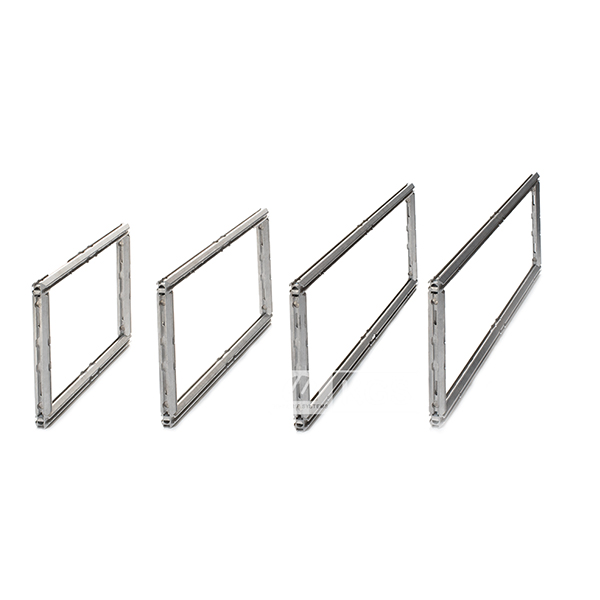

CAR MOUNT FRAME

Main frame using the Octogrip Frame Profiles.

Octogrip Frame Profiles combine the “Octogrip” tube and 4 inside sliding tracks.

• Octogrip Frame Profiles allows you to receive 50mm scaffolding clamps or Octogrip Clamp
• Inside sliding tracks allows to receive the Spyder Mount, Gekko rods clamps and Side mount brackets

Available sizes:

• 750 mm x 430 mm (included in the Car Mount Package)
• 1000 mm x 430 mm
• 1500 mm x 430 mm
• 1750 mm x 430 mm

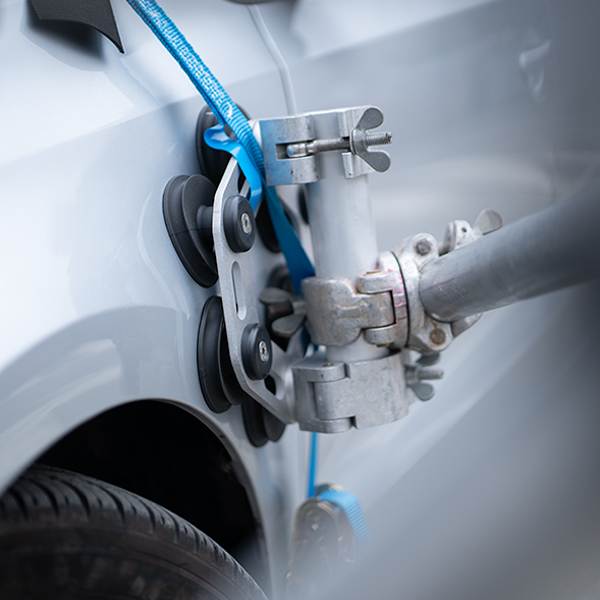

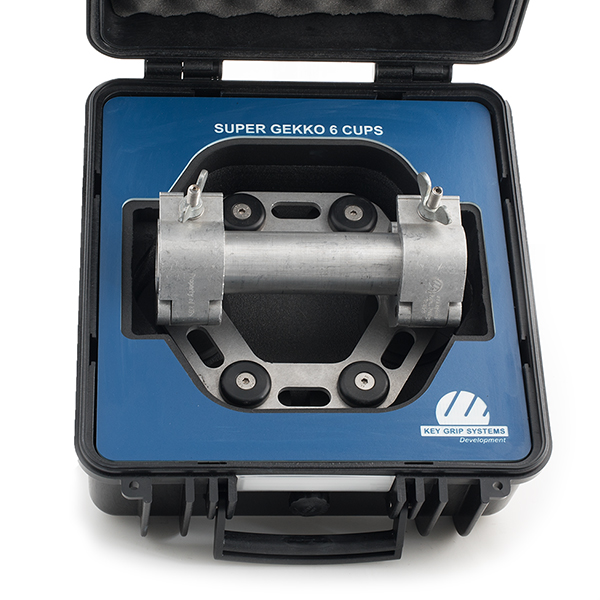

SUPER GEKKO  (1 units package)

6 vaccum cup mounted on a scafolding pipe handle. The Super Gekko offer incredible solutions to rig scaffolding pipe on cars or on non porous surface.

Tech specs.

• 6 vaccum cup 80mm
• Max charge: 6 x 7kg
• Diam: 27.5 cm / 11″
• 2  clamps diam 50mm
• Scafolding pipe handle: 50mm diam x 20 cm
• 6 x strap connection gap

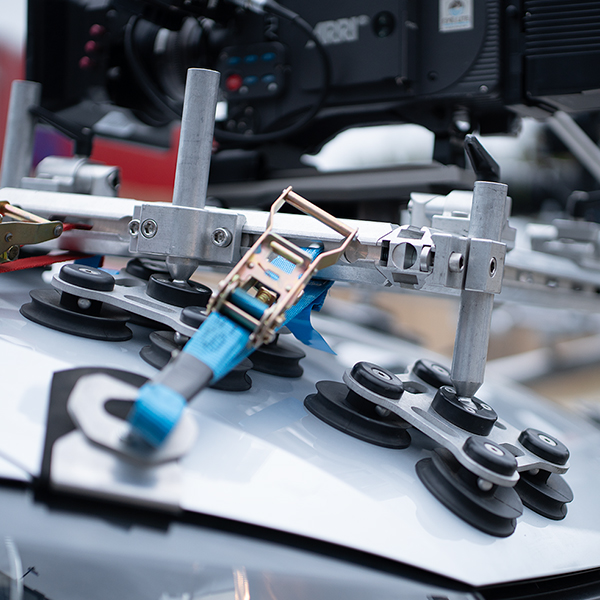

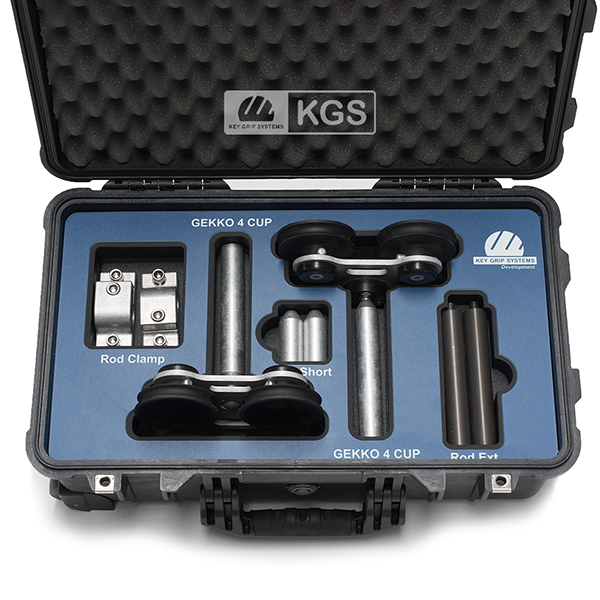

GEKKO 4 CUPS (2 units package)

Gekko 4 Cups gives incredible solutions to rig car mount on car or non porous curved surfaces.

Tech specs.

• 4 x 80 mm vaccum cup
• Max charge: 4 x 7kg
• 150 mm aluminium rod mounted on ball pivot  diam: 2,54 cm / 1″ (compatible with Griptech rods and clamps)
• 4 x  strap connection gap

Provided package:

• 2 Gekko 4
• 2 rods extension 150 mm / 6″
• 2 rods Clamps
• 2 small rods: 50 mm / 2″

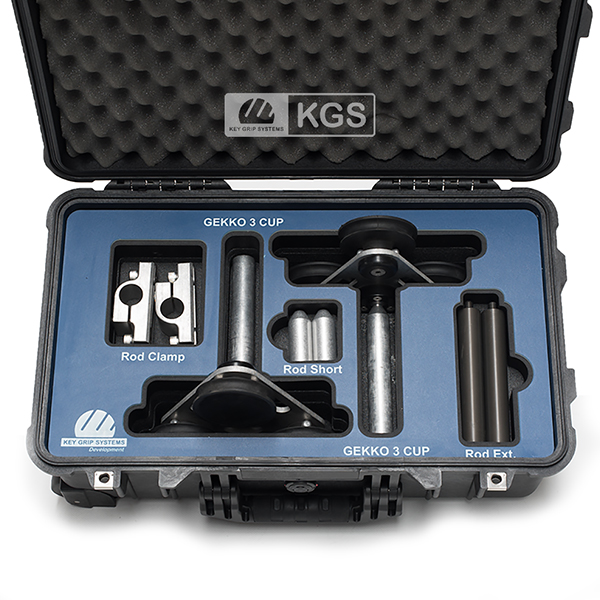

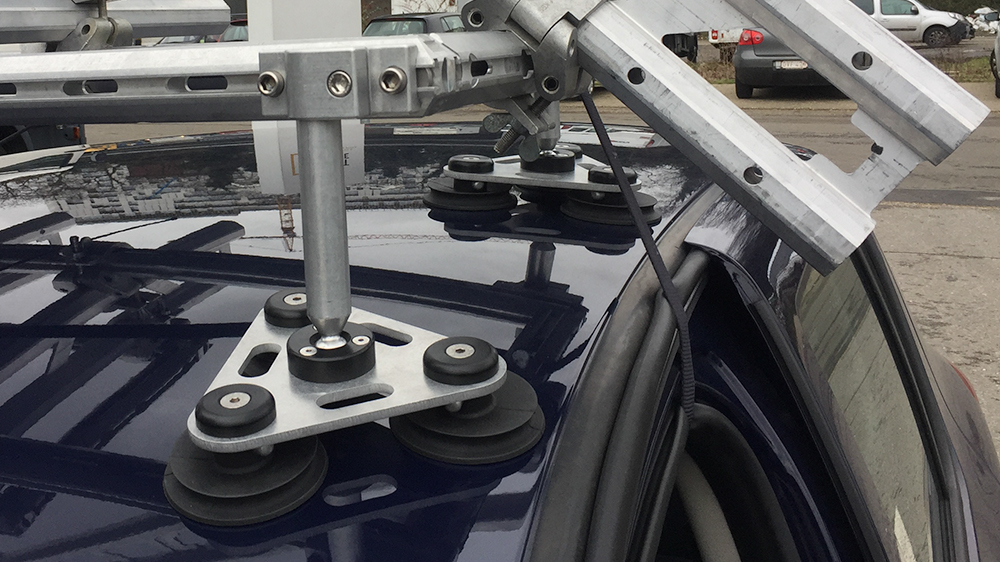

GEKKO 3 CUPS (2 units package)

Gekko 3 Cups gives incredible solutions to rig car mount on car or non porous curved surfaces.

Tech specs.

• 3 x 80 mm vaccum cup
• Max charge: 3 x 7kg
• 150 mm aluminium rod mounted on ball pivot  diam: 2,54 cm / 1″ (compatible with Griptech rods and clamps)
• 3 x  strap connection gap

Provided package:

• 2 Gekko 3
• 2 rods extension 150 mm / 6″
• 2 rods Clamps
• 2 small rods: 50 mm / 2″

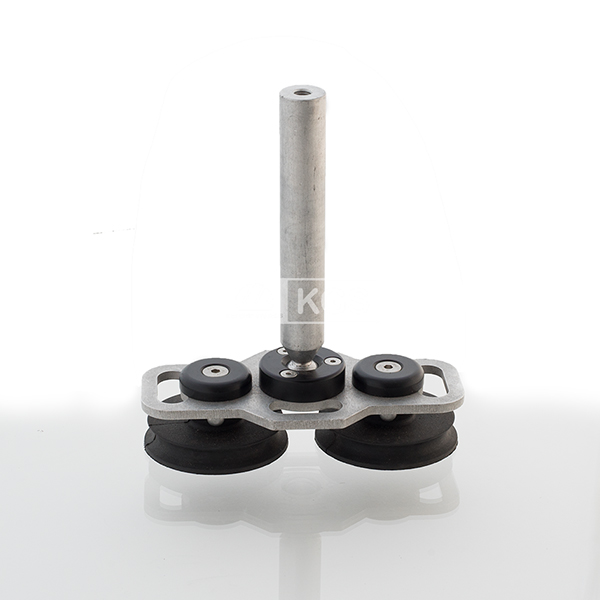

GEKKO 2 CUPS (2 units package)

2 vaccum cup mounted on a ball pivot rod.

Gekko 2 Cups gives incredible solutions to rig car mount on car or non porous curved surfaces.

Tech specs.

• 2 x 80 mm vaccum cup
• Max charge: 2 x 7kg
• 150 mm aluminium rod mounted on ball pivot  diam: 2,54 cm / 1″ (compatible with Griptech rods and clamps)
• 4 x  strap connection gap

Provided package:

• 2 Gekko 2
• 2 rods extension 150 mm / 6″
• 2 rods Clamps
• 2 small rods: 50 mm / 2″

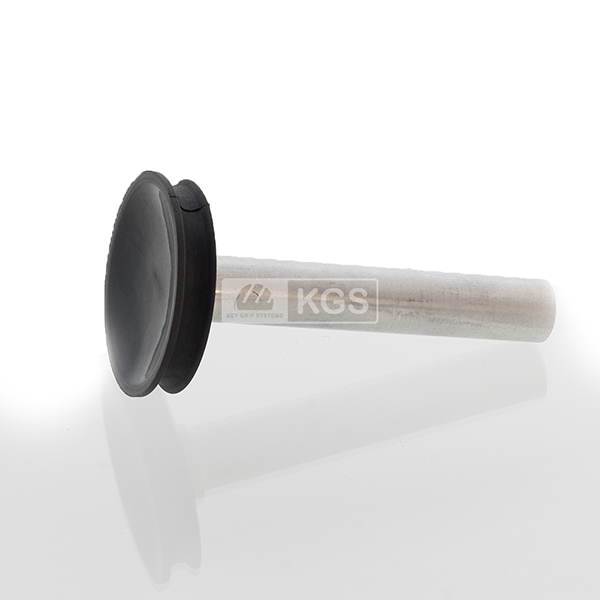

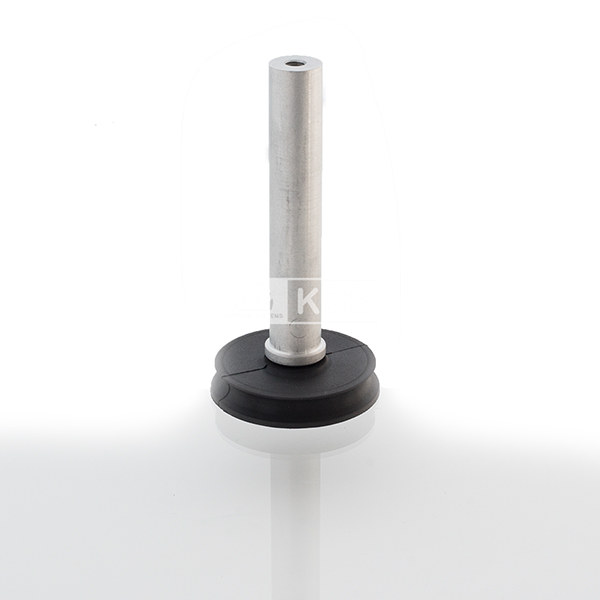

GEKKO 1 CUP (4 units package)

1 vaccum cup mounted on a fix rod.

Gekko 1 cup gives incredible solutions to rig car mount on car or non porous curved surfaces.

Tech specs.

• 80 mm vaccum cup
• Max charge: 7kg
• 150 mm  aluminium rod – diam: 2,54 cm / 1″ (compatible with Griptech rods and clamps)

Provided package:

• 4 Gekko 1
• 4 rods extension 150 mm / 6″
• 4 rods Clamps
• 4 small rods: 50 mm / 2″

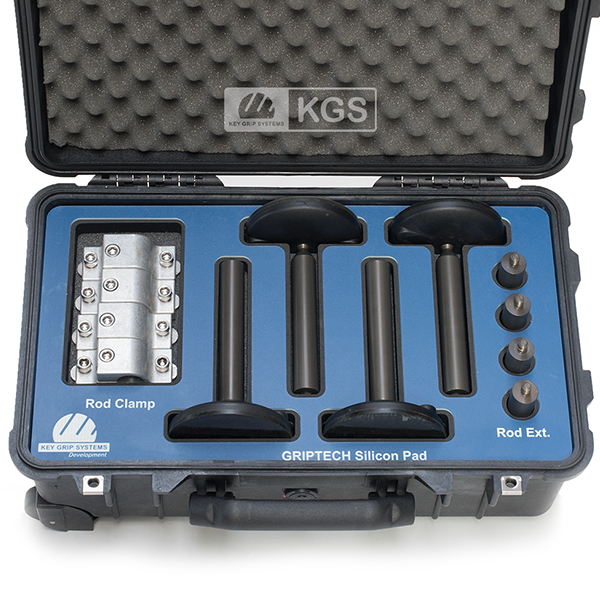

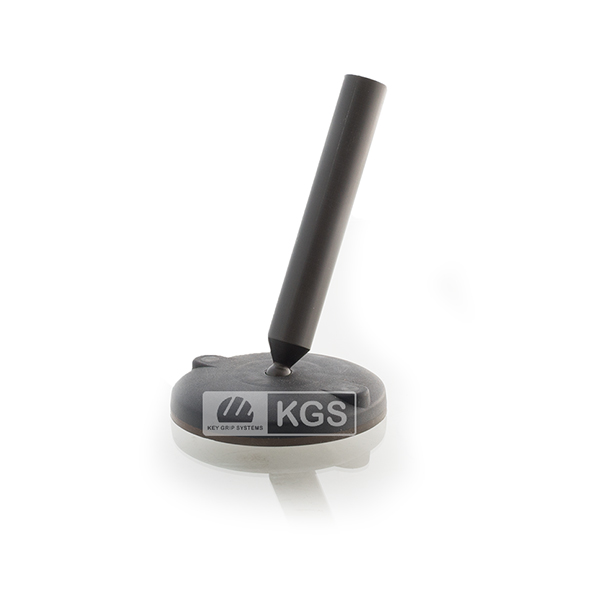

SILICON PAD (4 units package)

Griptech’s Silicon pad. Compatible with the KGSD Standard  &  Basic Car Mount.

Tech. specs.

• 117 mm Silicon pad
• 150mm aluminium rod – diam 1″ ( compatible with KGSD Car Mount )

Provided package:

• 4 silicon pad
• 4 rods extentions 150 mm / 6″
• 4 rods clamps

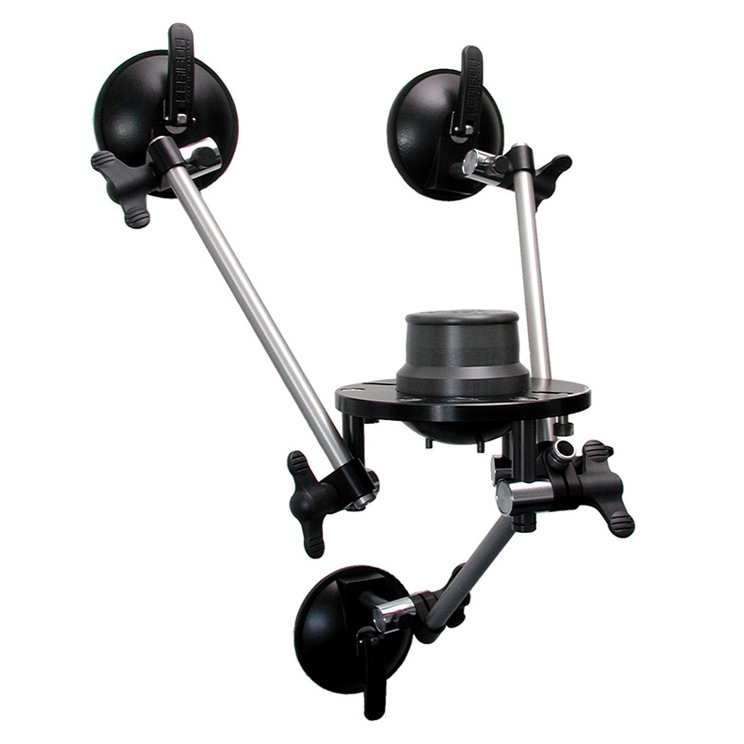

The Limped is compatible with the Gekko 1 , Gekko 2, Gekko 3  & Gekko 4  vaccum cup.

Including:

• 3 vaccum cup
• 1 Arri Bowl 150
• 1 Offset rod
• 3 short rods 1″
• 3 long rods 1″

• Hight: 8 cm / 3″
• Spécific 360° pan adjustment
• Specific 12° Tilt adjustment
• Specific 12° horizon adjustment

Compatible with GripTech equipment.

• Hight: 8 cm / 3″
• 360° pan adjustment
• 12° Tilt adjustment
• 12° Camera horizon adjustment

Compatible with GripTech equipment.
